Glazed Ceramic Laser Reflectors For Laser Medical Devices

Product Item : CLR016
Category： Ceramic Laser Reflectors
Material: Laser Ceramics
Purity: 99%
Application: Laser Medical Devices
Minimum order quantity: One piece
INQUIRY EMAIL

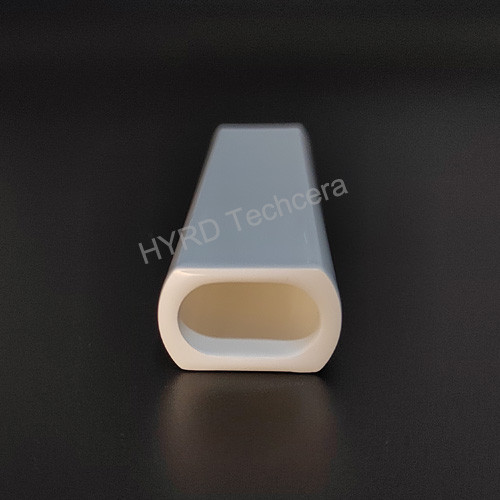

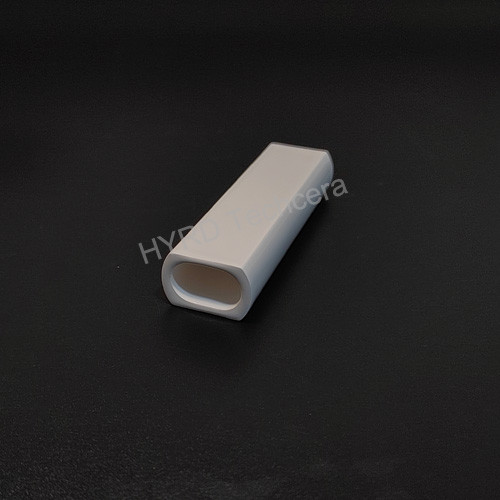

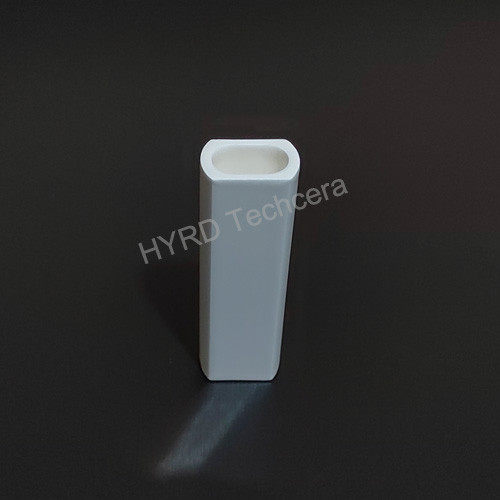

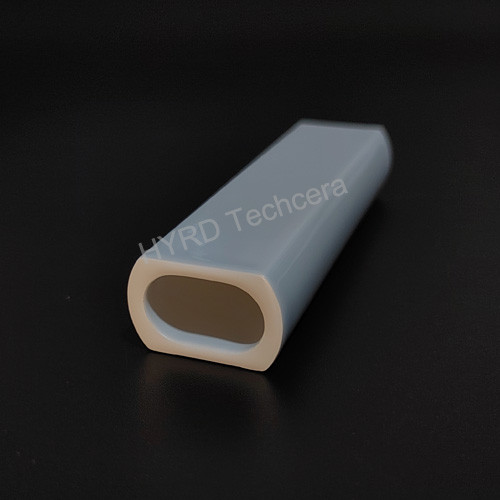

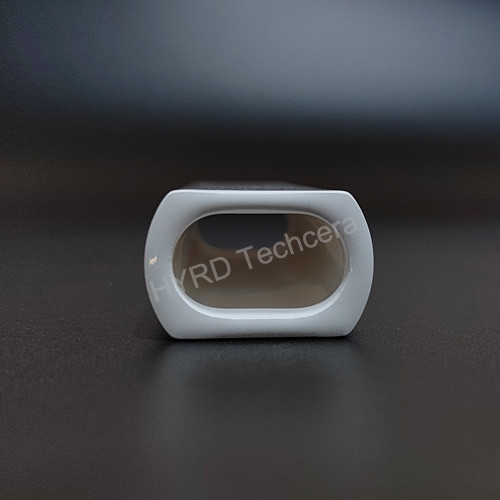

Glazed Ceramic Laser Reflectors For Laser Medical Devices
Laser ceramics are a new type of laser material. Laser ceramics mainly made of aluminum oxide are mainly used as ceramic laser reflectors for lasers. For different laser applications, glazed and unglazed coatings are applied to different lasers, greatly enhancing the efficiency of the laser and making it more effective in use.

Product Features:
1.The reflectivity is over 97% from 700-1200nm.
2.The reflectivity is over 95% from 500-1700nm.
3.The green body is porous and high strength.

Precautions for the use of Ceramic Laser Reflectors
1. During the transportation, storage, and assembly of ceramic laser reflectors, we shall avoid serious external force damage, such as falling off to the ground or forcibly pressing into the tube shell due to improper size;
2. The semi glazed ceramic laser reflectors must be sealed with the tube shell to prevent the ceramic laser reflector from inhaling a large amount of coolant, resulting in a decrease in power;
3. During assembly and maintenance, it is prohibited to scratch the ceramic reflective surface, causing a decrease in reflectivity, and the use of coolant can easily cause scaling on the ceramic surface;
4. When using short wavelength (such as 755nm) in high-temperature systems, it is important to pay attention to the selection of cooling system pipelines and equipment materials to avoid the contamination of ceramic surfaces by free metal oxides.

About Us
Beijing HYRD Photonics Co., Ltd. Technical Ceramics Research Center was established in year 2011, and locates in Beijing, China. The company is committed to the technical research and development, manufacturing and sales of advanced ceramic materials, parts and related products. After more than 10 years of continuous hard work, it has accumulated a lot of industry experience in the advanced ceramic industry.

The company specializes in the research and development, customized manufacturing and sales of various technical ceramic material and its products. Including alumina ceramics, zirconia ceramics, boron nitride ceramics, silicon nitride ceramics, silicon carbide ceramics, machinable ceramics and other advanced ceramic materials. Products include ceramic rods, tubes, sleeves, plates, blocks, bars, rings, shafts, pins, laser reflectors and cavities and various precision ceramic parts. The product has the characteristics of high temperature resistance, wear resistance, high hardness, high strength, high precision, strong insulation, corrosion resistance, acid and alkali resistance, oxidation resistance, non-magnetic, good chemical stability, etc. It is often used in environments where glass and metal materials are not adequate. Advanced ceramic products are widely used in aerospace, scientific research, fluid control, food industry, automobile industry, military, high temperature environment, electrical and electronic, metallurgy, medical, laser, semiconductor, glass, machinery manufacturing and other industrial fields.

Please contact us for more information!
