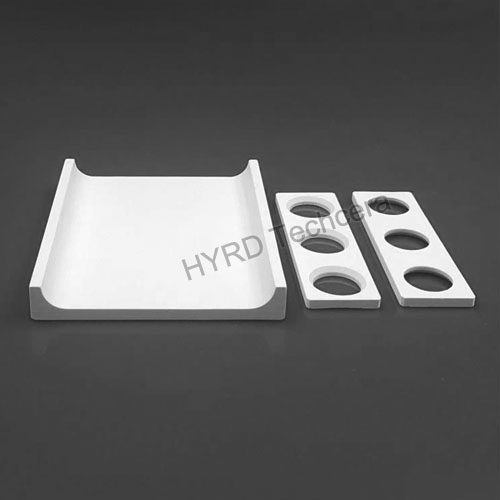

Cynosure Ceramic Reflector Insert for Laser Head

Cynosure Ceramic Reflector Insert for Laser Head

This ceramic reflector is used in Cynosure Laser.‌
Ceramic reflector is a type of laser optical cavity material with excellent stability and long lifespan. Its low reflectivity allows the beam to spread evenly and absorb more laser line energy inside the cavity, thereby increasing the bandwidth of the laser. These characteristics of ceramic reflectors make them perform better in applications that require higher average power and lower peak power.
Cynosure Ceramic Reflector Insert for Laser Head

Product Features

• Easy to produce
• Low production cost
• Large size
• Multi-functionality
• Mass production

Main Physical Characteristics

Material
 Alumina ceramic
Purity
 99%
Color
 White
Bulk Density (fired)
 3.1g/cm3
Porosity
 22%
Surface Treatment
 Glazed
Bending Strength
 170MPa
Thermal expansion coefficient
 7.9×10-6/C (200-500℃)
9×10-6/C (200～1000℃)
Thermal shock resistance
 No crack when temperature from 15-100℃ for 150 times
