Ceramic Laser Reflectors

HOME      PRODUCTS     Ceramic Laser Reflectors       Ceramic Reflector Cavity for Water Coole

  • Ceramic Reflector Cavity for Water Cooled ND:YAG Laser
  • Ceramic Reflector Cavity for Water Cooled ND:YAG Laser
  • Ceramic Reflector Cavity for Water Cooled ND:YAG Laser
  • Ceramic Reflector Cavity for Water Cooled ND:YAG Laser
  • Ceramic Reflector Cavity for Water Cooled ND:YAG Laser
Ceramic Reflector Cavity for Water Cooled ND:YAG LaserCeramic Reflector Cavity for Water Cooled ND:YAG LaserCeramic Reflector Cavity for Water Cooled ND:YAG LaserCeramic Reflector Cavity for Water Cooled ND:YAG LaserCeramic Reflector Cavity for Water Cooled ND:YAG Laser

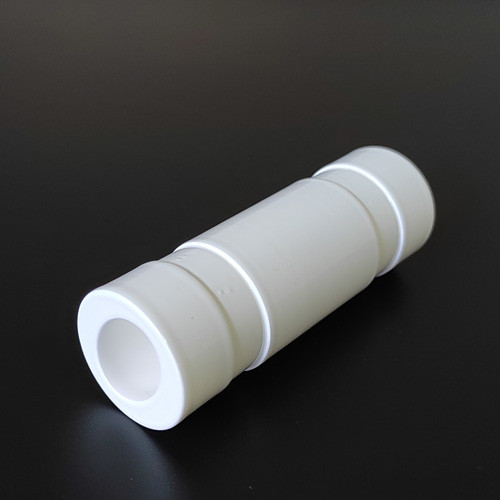

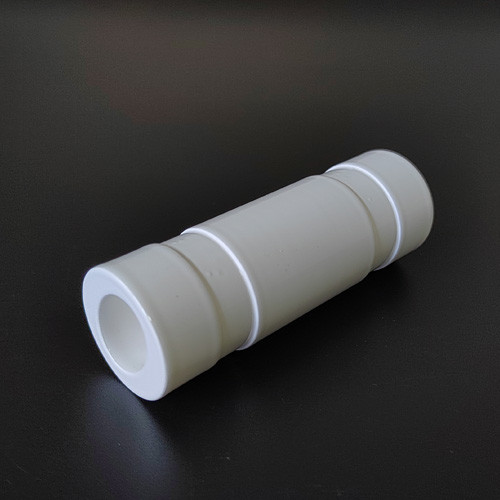

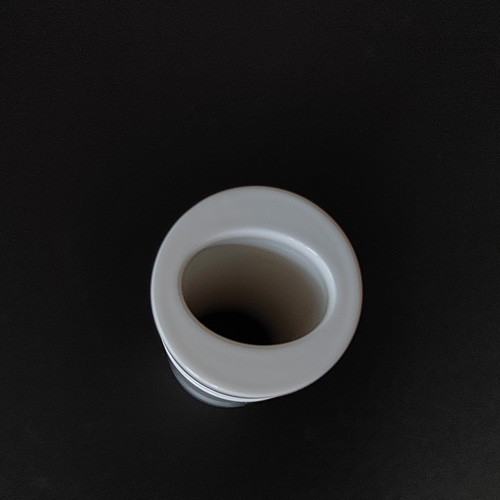

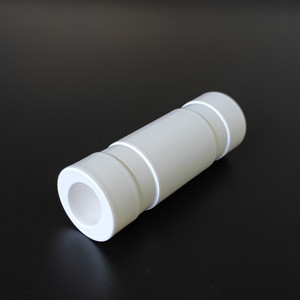

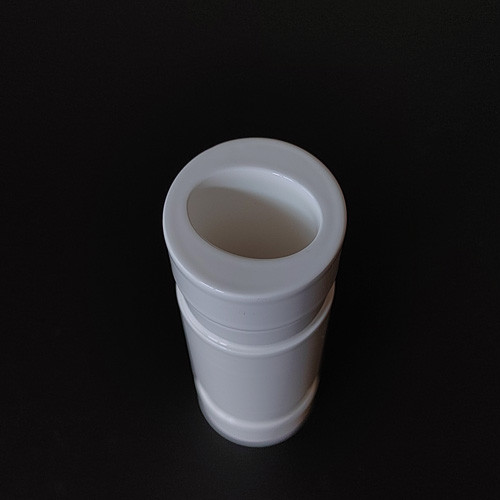

Ceramic Reflector Cavity for Water Cooled ND:YAG Laser

Ceramic Reflector Cavity for Water Cooled ND:YAG Laser

Main Characteristics of ceramic plate:
1. The surface is fully glazed for high reflectivity and easy cleaning;
2. The reflectivity reaches 97% at the wavelength of 600-1000nm;
3. The reflectivity exceeds 95%at the wavelength of 380-1100nm;
4. The green body has appropriate porosity and high-strength characteristics.

Main physical properties:
Color: White
Density: 3.1Mg/m⊃3;
Porosity: 22%
Bending strength: 170Mpa
Thermal expansion coefficient: 7.9×10-6--/С (200～500℃)
                                  9×10-6/С（200～1000℃）
Tags:
PREVIOUS：Ceramic Cavity Reflectors for Aesthetic Lasers NEXT：Ceramic Plate for Laser
RELATED PRODUCTS:

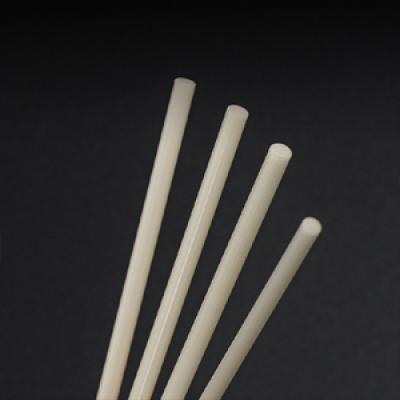

High Surface Quality Zirconia Ceramic Rod Used in High Temperature
