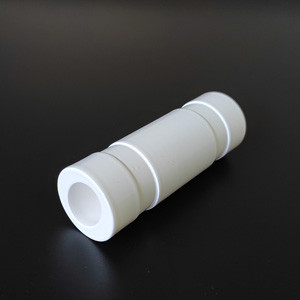

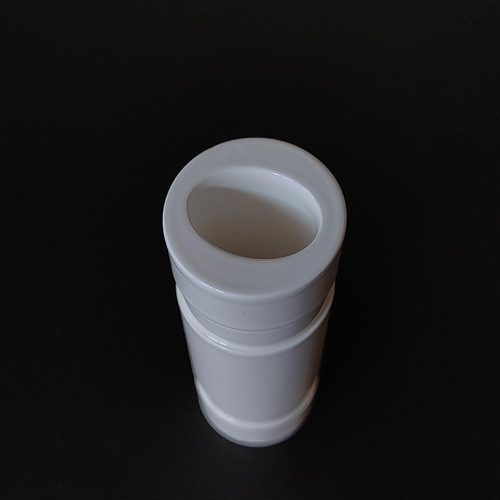

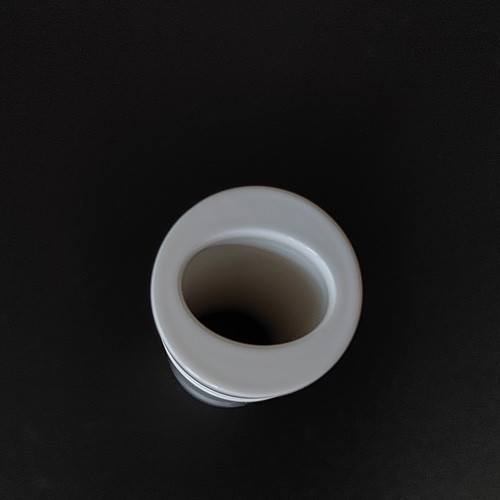

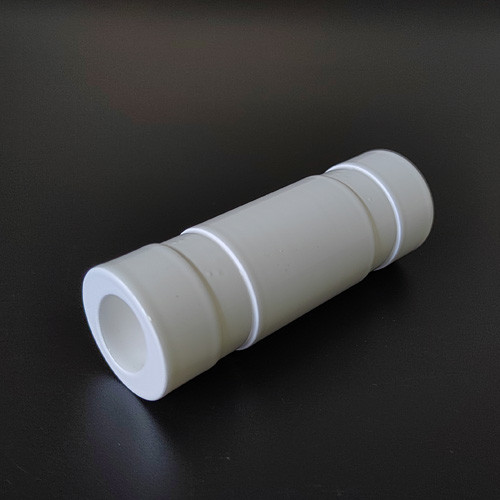

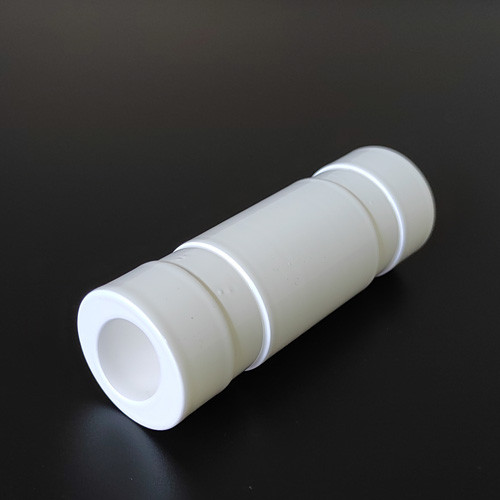

Ceramic Cavity Reflectors for Aesthetic Lasers

Ceramic Cavity Reflectors for Aesthetic Lasers

The alumina ceramic body has good diffuse reflection than Macor ceramic, the reflectivity can be 10% higher.
Main Characteristics of the ceramic cavity reflectors for aesthetic lasers:
1. The surface is fully glazed for high reflectivity and easy cleaning;
2. The reflectivity reaches 97% at the wavelength of 600-1000nm;
3. The reflectivity exceeds 95% at the wavelength of 380-1100nm;
4. The green body has appropriate porosity and high-strength characteristics.

Main physical properties:
Color: White
Density: 3.1Mg/m⊃3;
Porosity: 22%
Bending strength: 170Mpa
Thermal expansion coefficient: 7.9×10-6--/С (200～500℃)
9×10-6/С（200～1000℃）
