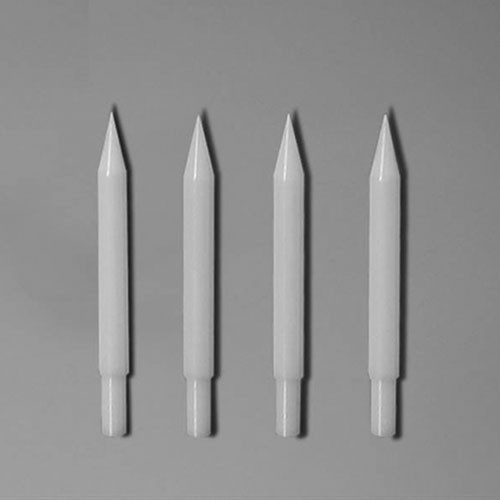

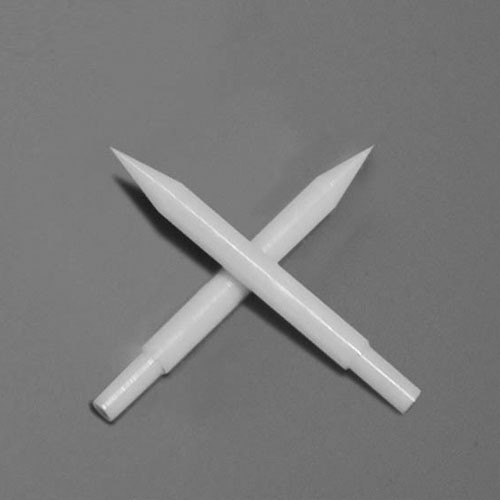

Zirconia Ceramic Pin Used In Electronics

  • Product Item : R007
  • Category： Ceramic Rods
  • Material: Ziconia
  • Tolerance: 0.005mm
  • Application: Electronics
  • Roughness: Ra0.3
  • INQUIRY   EMAIL

Zirconia Ceramic Pin Used In Electronics

The application range of ceramic pin is relatively wide, especially in the electronic and electrical industry. In addition, some pins made of special materials can also be used in the aerospace field, providing strong support for cutting-edge scientific research.


Material properties of Zirconia ceramic (ZrO2)

Description
 Unit
 Value
Density
 g/cm3
 6.05
Water Absorption
 %
 0
Thermal Expansion Coefficient
 10-6 /k
 10.5
Young's Modulus of Elasticity
 Gpa
 210
Poisson's Ratio
 /
 0.3
Hardness (HV)
 MPa
 1200
Bending Strength (Room Temperature)
 MPa
 950
Bending Strength (700℃)
 MPa
 210
Compressive Strength (Room Temperature)
 MPa
 2000
Fracture Toughness
 Mpa.m1/2
 10
Thermal Conductivity (Room Temperature)
 W/m.k
 2
Specific Resistivity (Room Temperature)
 Ω.mm2/m
 ＞1015
Operating Temperature
 ℃
 ≤1350
Acid and alkali Corrosion Resistance
 /
 Strong

Zirconia ceramics are a new type of advanced technical ceramics, mainly divided into three types of magnesium-stabilized zirconia ceramics, cerium-stabilized zirconia and yttrium-stabilized zirconia. All three kinds of zirconia ceramics have excellent physical and chemical properties. They have not only become research hotspots in the field of scientific research, but also have been widely used in industrial production. They are important raw materials for refractory materials, high-temperature structural materials and electronic materials.
