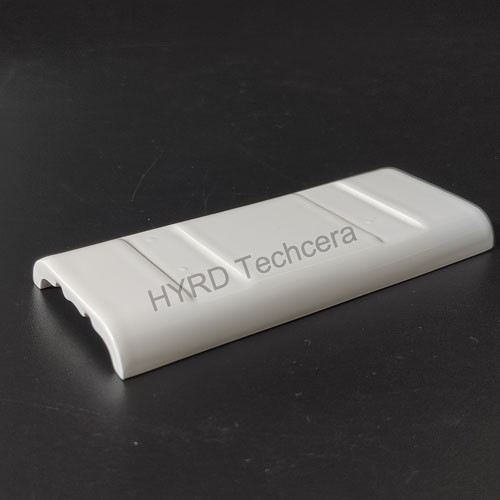

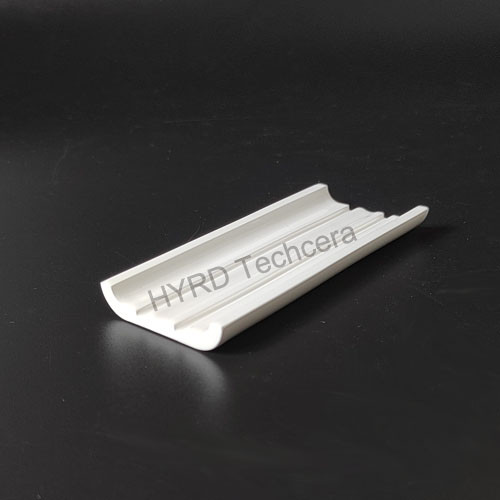

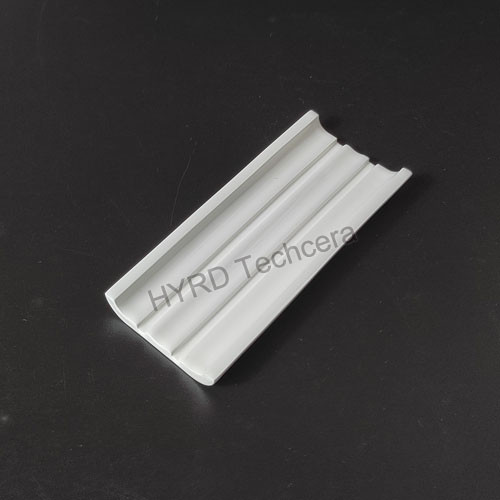

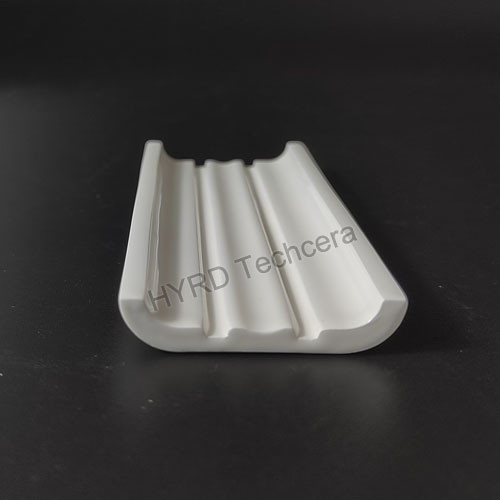

Diffuse Reflective Ceramic Sheet for Lasers

Diffuse Reflective Ceramic Sheet for Lasers

Product Specification:
1 Material: Alumina ceramic
2 Purity: over 99% alumina Al2O3
3 Color: White
4 MOQ: No limited
5 Dimension: Standard
6 Application:Laser Device
7 Features: Diffuse Reflectance
8 Origin: China
9 Brand: HYRD
10 Surface: Glazed
11 Packing: Paper carton

Main physical properties:
Density: 3.1Mg/m⊃3;
Porosity: 22%
Bending strength: 170Mpa
Thermal expansion coefficient:
7.9×10-6--/С (200～500℃)
9×10-6/С（200～1000℃）

Main Characteristics of ceramic sheet reflectors:
1. The surface is fully glazed for high reflectivity and easy cleaning;
2. The reflectivity reaches 98% at the wavelength of 600-1000nm;
3. The reflectivity exceeds 96%at the wavelength of 400-1200nm;
4. The green body has appropriate porosity and high-strength characteristics.

Welcome to contact us for more information.
