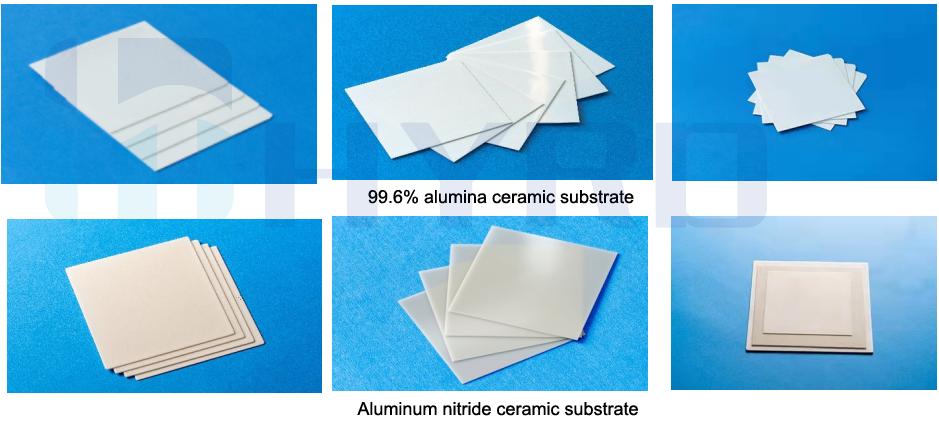

Aluminum Nitride Ceramic Substrates For Thin Film Circuits

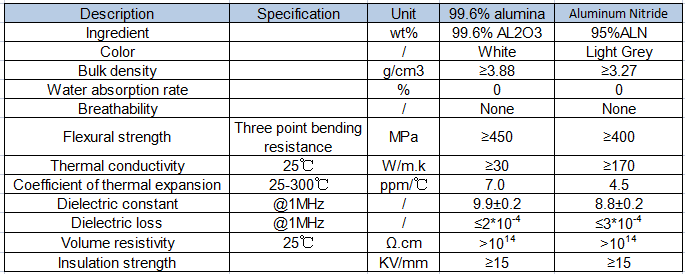

Physical Properties of Aluminum Nitride Ceramic
Substrate size
Typical dimensions of substrate:
Substrate size
|
Tolerance
|
50.8*50.8
|
±0.2
|
76.2*76.2
|
±0.3
|
101.6*101.6
|
±0.4
|
Substrate thickness
The thickness of the substrate is 0.1-3mm, with typical thicknesses of 0.254mm, 0.381mm, 0.508mm, and 0.635mm.
±0.005
Thickness
|
Tolerance of Thickness
|
|
Immediate firing type
|
Grinding type
|
Polished type
|
0.127
|
±0.012
|
±0.005
|
±0.005
|
0.254
|
±0.025
|
±0.005
|
0.381
|
±0.038
|
±0.005
|
±0.005
|
0.508
|
±0.050
|
±0.01
|
±0.01
|
0.635
|
±0.063
|
±0.01
|
±0.01
|
0.762
|
±0.076
|
±0.01
|
±0.01
|
1.016
|
±0.10
|
±0.01
|
±0.01
|
Technical level
Substrate type
|
Surface roughness
|
Warpage
|
Immediate firing type
|
Front side：≤100nm
Opposite side：≤200nm
|
0.3%
|
Grinding type
|
As per customer requirement
|
0.1%
|
Polished type
|
≤25nm
|
0.1%
|
