  • 99.6% Alumina Ceramic Substrate For Thin Film Circuits

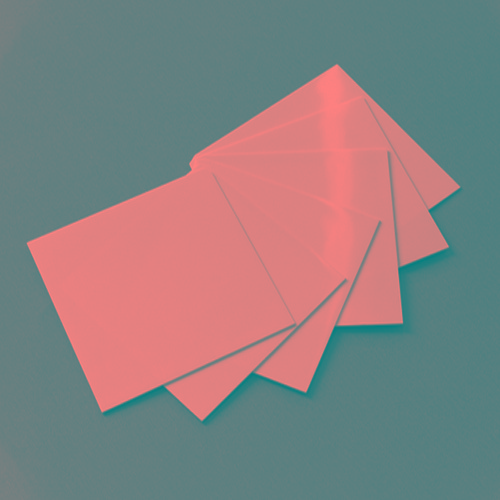

99.6% Alumina Ceramic Substrate For Thin Film Circuits

  • Product Item : S005
  • Category： Ceramic Substrates
  • Material: 99.6% alumina Ceramic
  • Substrate thickness 0.1-3mm
  • Typical thicknesses are 0.254mm, 0.381mm, 0.508mm, and 0.635mm
  • Application: For thin film circuits
  • INQUIRY   EMAIL
99.6% Alumina Ceramic Substrates For Thin Film Circuits

Physical Properties of Aluminuma Ceramic
Physical Properties of Aluminum Nitride Ceramic

Substrate size

Typical dimensions of substrate:

Substrate size
 Tolerance
50.8*50.8
 ±0.2
76.2*76.2
 ±0.3
101.6*101.6
 ±0.4

Substrate thickness
The thickness of the substrate is 0.1-3mm, with typical thicknesses of 0.254mm, 0.381mm, 0.508mm, and 0.635mm.

±0.005

Thickness
 Tolerance of Thickness

Immediate firing type
 Grinding type
 Polished type
0.127
 ±0.012
 ±0.005
 ±0.005
0.254
 ±0.025
 ±0.005
0.381
 ±0.038
 ±0.005
 ±0.005
0.508
 ±0.050
 ±0.01
 ±0.01
0.635
 ±0.063
 ±0.01
 ±0.01
0.762
 ±0.076
 ±0.01
 ±0.01
1.016
 ±0.10
 ±0.01
 ±0.01

Technical level

Substrate type
 Surface roughness
 Warpage
Immediate firing type
 Front side：≤100nm
Opposite side：≤200nm
 0.3%
Grinding type
 As per customer requirement
 0.1%
Polished type
 ≤25nm
 0.1%
