Alumina Ceramic Reflector for Cynosure Apogee+

Alumina Ceramic Reflector for Cynosure Apogee+

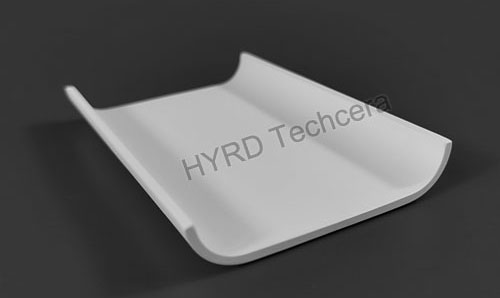

This alumina ceramic reflector insert is used for Cynosure Apogee+. Its low reflectivity allows the beam to spread evenly and absorb more laser line energy inside the cavity, thereby increasing the bandwidth of the laser. It is a type of laser optical cavity material with excellent stability and long lifespan.


Main Physical Characteristics

Material
Alumina ceramic
Purity
99%
Color
White
Bulk Density (fired)
3.1g/cm3
Porosity
22%
Surface Treatment
Glazed
Bending Strength
170MPa
Thermal expansion coefficient
7.9×10-6/C (200-500℃)
9×10-6/C (200~1000℃)
Thermal shock resistance
No crack when temperature from 15-100℃ for 150 times


Applications
These characteristics of ceramic reflectors make them perform better in applications that require higher average power and lower peak power. Such as:
• Laser Welding Machine,
• Laser Cutting Machine,
• Laser Marking Machine,
• Medical Laser System
